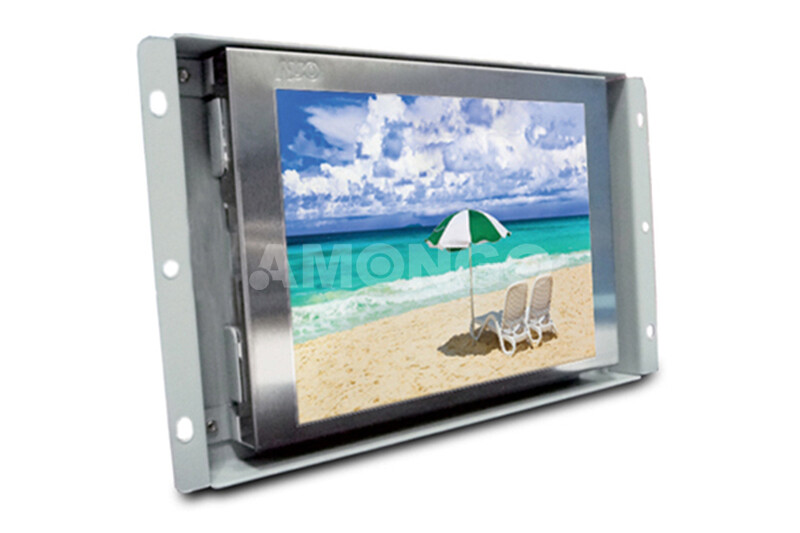

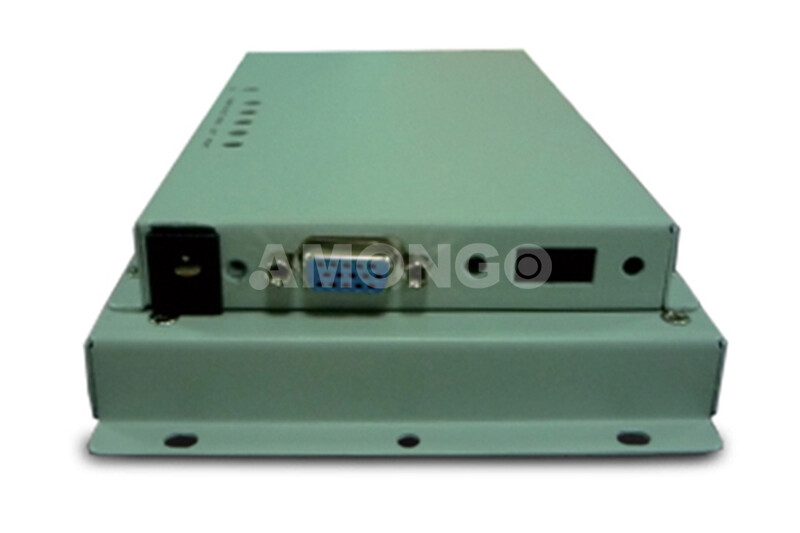

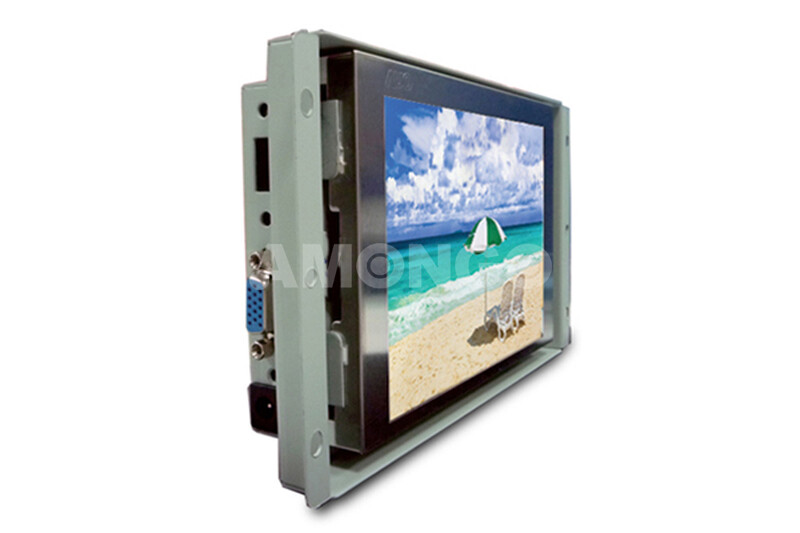

بوصة نوع الإطار شاشات الكريستال السائل

Model Name

AMG-06OPSK01N1

Screen Size

5.7"

Active Display Area (mm)

115.2(H) x 86.4(V)

Pixel Pitch (mm)

0.18x0.18

Display Mode

Normally white

Display Resolution (pixel)

640x480

Contrast Ratio

800:1

Display Color

262K

Brightness (CD/㎡)

700

Backlight

LED

Viewing Angles (CR =10)

160(H)X140(V)

Response Time(Typ.Tr+Tf)

25ms

Signal Connector

VGA

Power Consumption

DC 12V

Dimension(VxHxT)

188X114X36.3

Operating Temperature

-30～80℃

Storage Temperature

-30～80℃

Relative Humidity

5(%RH)～90(%RH)
