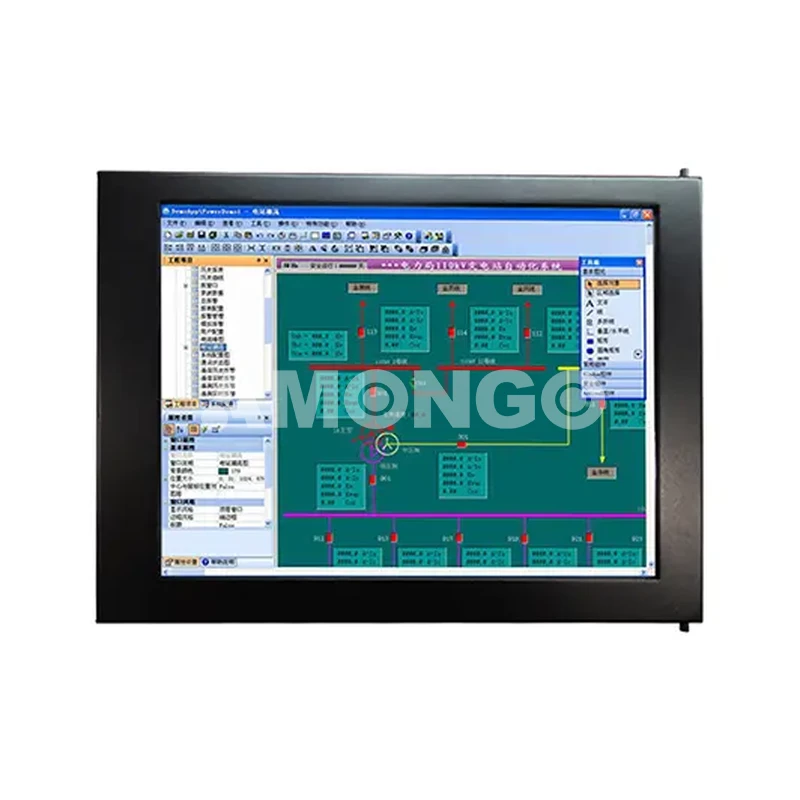

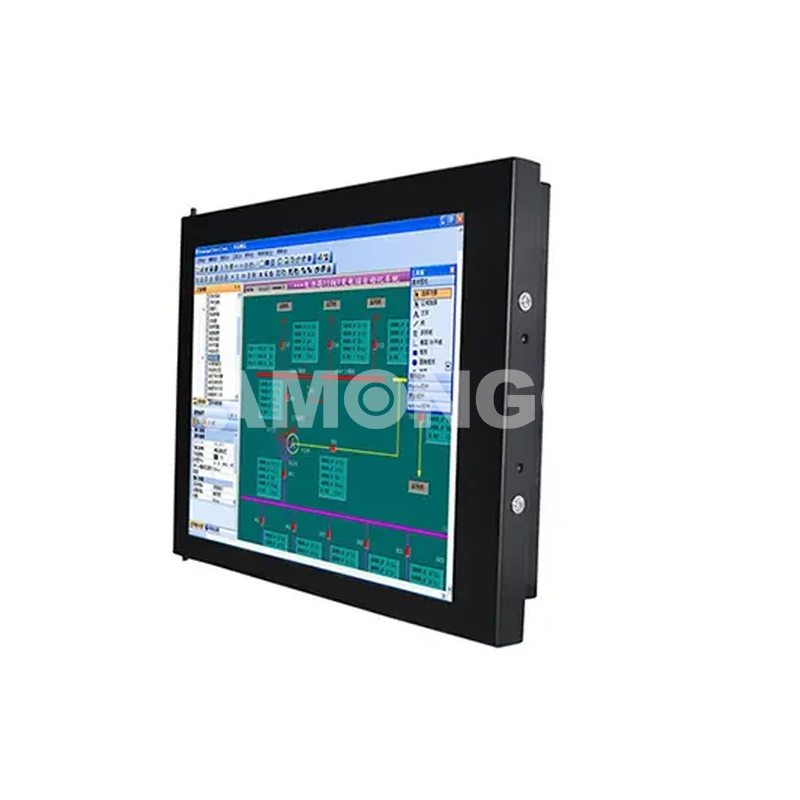

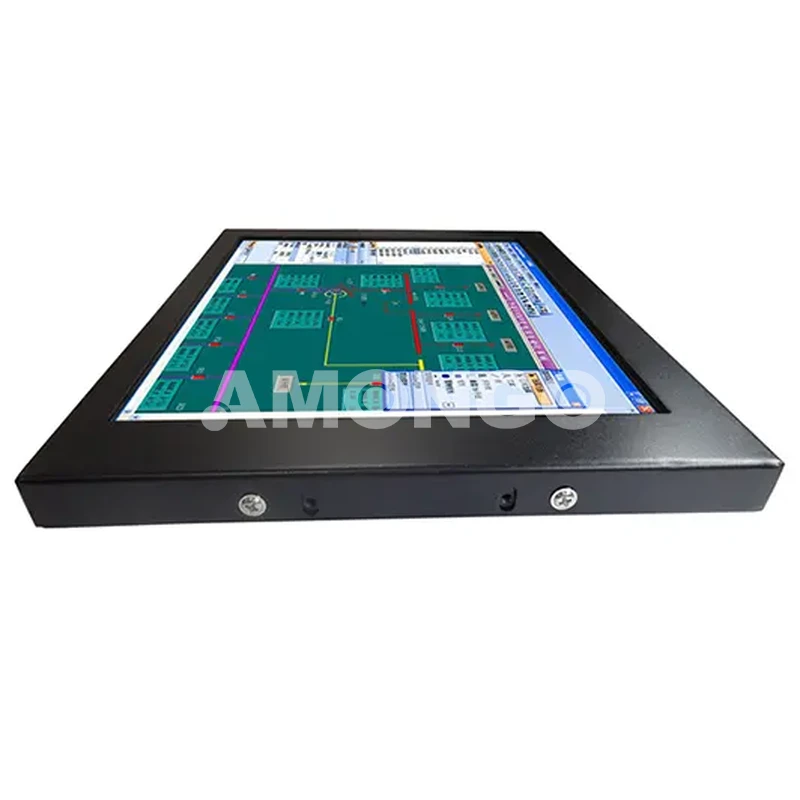

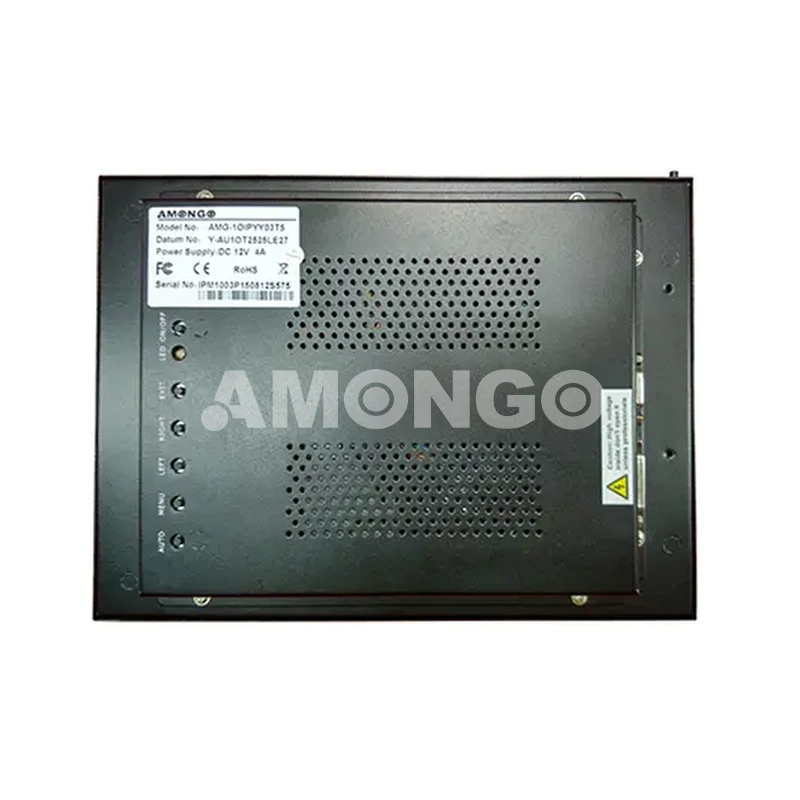

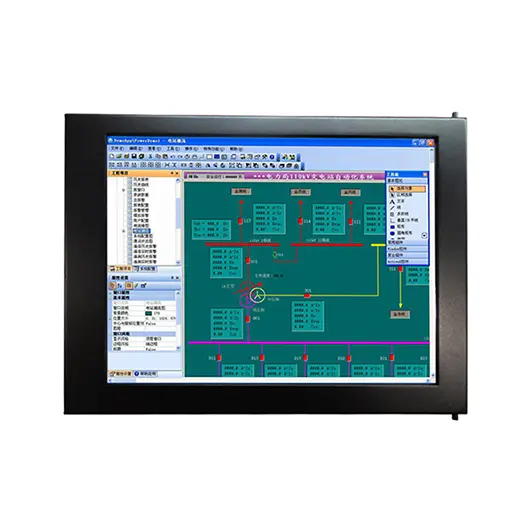

Model Name |
AMG-10IPYY03T5 |
|
Screen Size |
10.4" |
|
Active Display Area (mm) |
211.2(H)x158.4(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Display Mode |
Normally White |
|
Display Resolution (pixel) |
800x600 |
|
Contrast Ratio |
500:1 |
|
Display Color |
PCT Touchscreen(10 Points) |
|
Brightness (CD/m ) |
230 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
120(H)x100(V) |
|
Response Time(Typ.Tr+Tf) |
35ms |
|
Signal Connector |
VGA/DVI/USB |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
260.4X193.4X38 |
|
Operating Temperature |
-30~85℃ |
|
Storage Temperature |
-30~85℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
