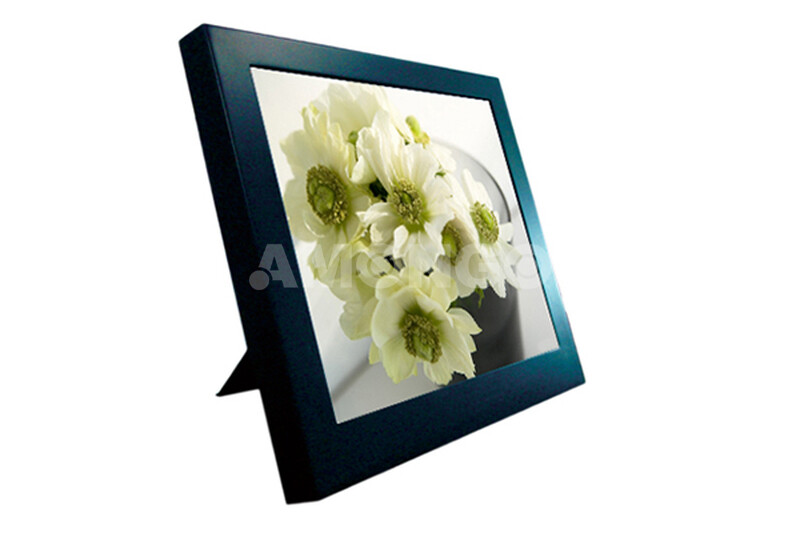

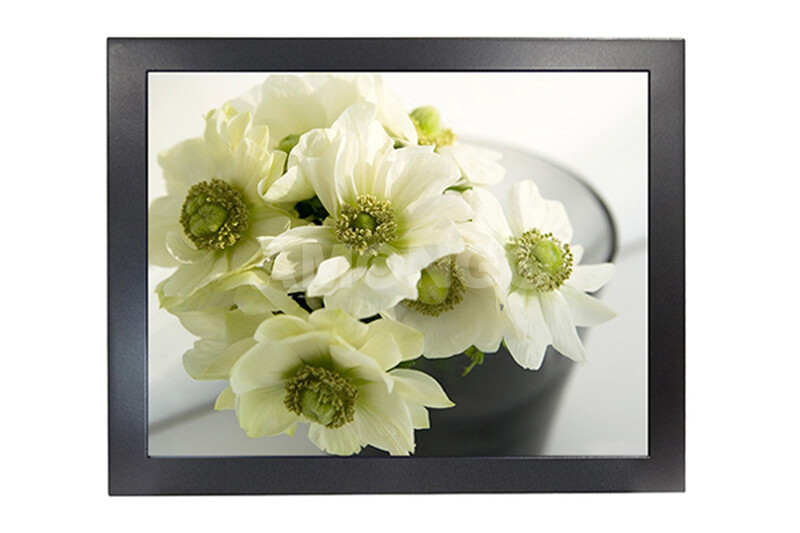

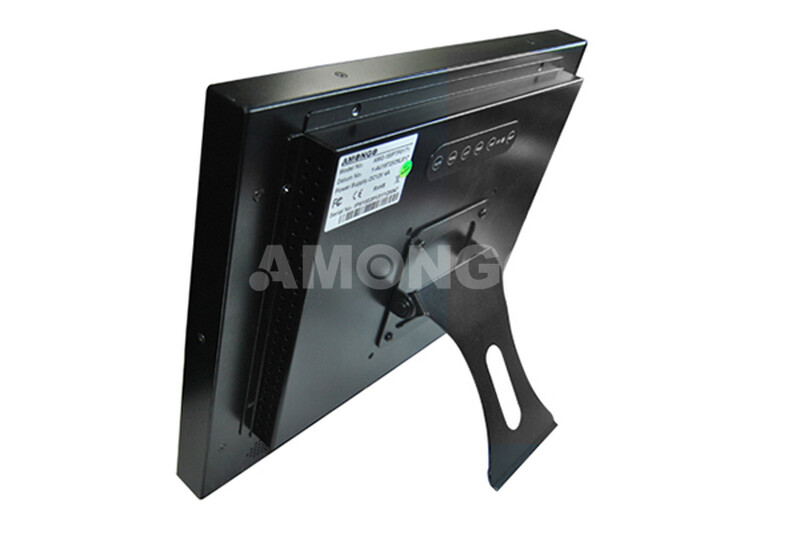

بوصة جزءا لا يتجزأ من تركيب شاشات الكريستال السائل

Model Name

AMG-15IPTP01T1

Screen Size

15"

Active Display Area (mm)

304.128(H) x 228.096(V)

Pixel Pitch (mm)

0.297x0.297

Display Mode

Normally white

Display Resolution (pixel)

1024x768

Contrast Ratio

700:1

Display Color

16.2M/262K colors

Brightness (cd/㎡)

400

Backlight

LED

Viewing Angles (CR =10)

160(H)X140(V)

Response Time(Typ.Tr+Tf)

8ms

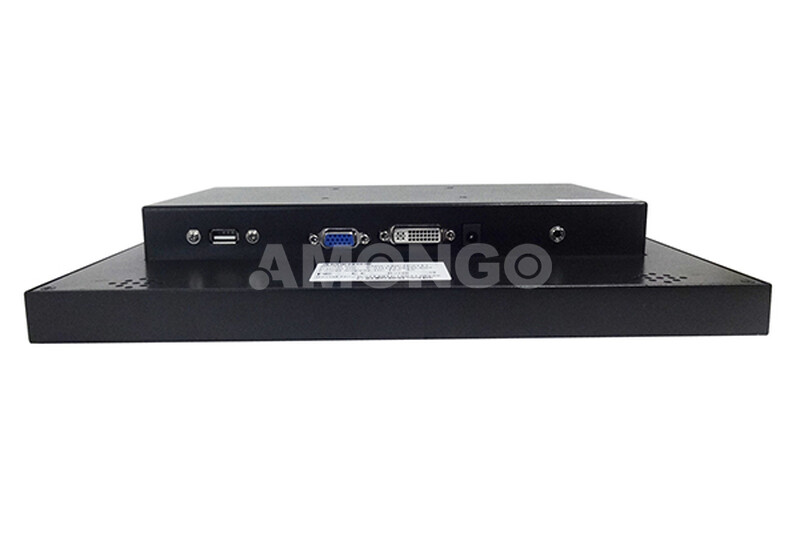

Signal Connector

VGA/DVI/USB/Audio

Power Consumption

DC 12V

Dimension(VxHxT)

346X270X48

Operating Temperature

-30～85℃

Storage Temperature

-30～85℃

Relative Humidity

5(%RH)～90(%RH)
